适用范围:
Scope of application:
各种报废的家电设备电路板的基板与电子元件的拆解分离。
Dismantle and separate substrates and electronic components of circuit boards of a variety of discarded household appliances.
结构特点:
Structural feature:
1.电路板电子元件刮板机:由脱锡炉、自动拆解机、自动抽尘及收尘系统、输送平台、拆解室、电控部分组成,设备自动化程度高,代替了人工拆解,缩短了拆解时间,并且占地面积小等特点。
1. Circuit board electronic component scraper conveyor: it is composed of the tin removal furnace, automatic dismantling machine, automatic dust exhaust and dust collection system, conveyor platform, dismantling room and electric control part, a high degree of automation of the equipment, replace manual dismantling, shorten the time of dismantling, and cover a small area, etc.

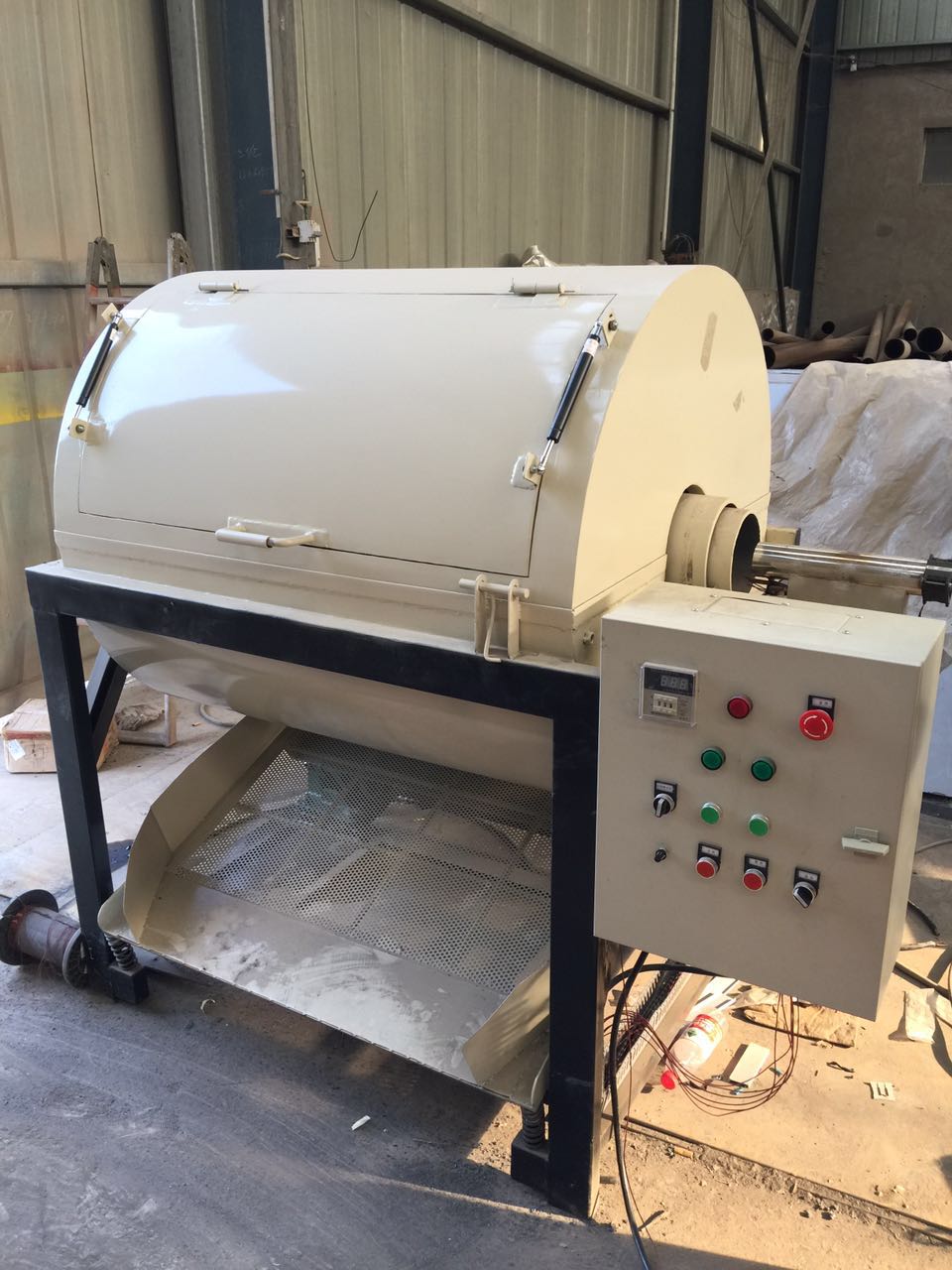

2.电路板高温电子元件拆解机:电路板高温拆解机内筒采用六毫米厚的45号防滑钢板外壁采用保温棉保温以防温度流失及相对应的生产技术;安全可靠,性能稳定,经耐用等特点,采用自动温控、强制送风、熄火自燃控制的自动化加温装置,设定一次温度自动记忆保存。是电子电路板行业生产领域不可缺少的理想工具。
2. Circuit board high temperature electronic component dismantling machine: the inner tank of the circuit board high temperature dismantling machine uses the 6mm-thick No. 45 anti-skid steel plate, and the outer wall is insulated with the insulating cotton to prevent the loss of temperature and the corresponding production technology; safe and reliable, stable performance, durable and other characteristics, use the automatic heating device of automatic temperature control, forced air supply and flameout self-ignition control, and set up the automatic memory preservation of temperature per time. It is an indispensable ideal tool in the production area of the electronic circuit board industry.
表格参数Table parameters:
名称 Designation | 型号 Model | 功率(kw) Power (kw) | 外观尺寸(mm) External dimension (mm) | 数量(台) Quantity (set) | 重量(kg) Weight (kg) |
脱锡炉 Tin removal furnace | SY-600 | 3.2 | 650*450*750 | 2 | 85 |
自动拆解机 Automatic dismantling machine | SY-750 | 1.5 | 6500*1100*1700 | 1 | 1250 |
型号 Model | 温度范围(度) Range of temperature (tJ) | 转速(r min) Speed (rmin) | 功率(kw) Power (kw) | 外观尺寸(mm) External dimension (mm) | 重量(kg) Weight (kg) |
SY-80-90 | 25-300 | 5-60 | 3.75 | 1680*980*1420 | 585 |
SY-90-110 | 25-300 | 5-60 | 4.75 | 1880*1080*1580 | 870 |
